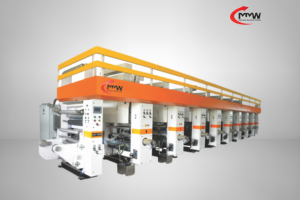

Shaftless Rotogravure Printing Machine
The Shaftless Rotogravure Printing Machine represents the latest innovation in flexible packaging printing technology. Featuring independent servo-driven printing units, this machine eliminates the need for mechanical line shafts, resulting in precise registration, faster setup times, and minimal material wastage.
Advanced automation and digital control systems allow operators to achieve consistent print quality even at high speeds. The shaftless design also improves energy efficiency, reduces maintenance costs, and enables easy upgrades.
Product Details
Get a Quote Now
Main Technical Features
| Web Width |
800 mm, 1000 mm, 1300 mm, 1500 mm |
| Min. Recommended Web Width |
400 mm, 500 mm, 650 mm, 750 mm |
| Max Cylinder Circumference |
400–900 mm / 1200 mm (Optional) |
| Unwinder & Rewinder Diameter |
800 mm (Shaftless Type) |
| Registration Control |
Vertical / Horizontal Motorised |
| Machine Speed |
250 MPM |
| Printable Materials |
Polyester, BOPP, Paper, LDPE, PVC |
| Drive System |
5 Drive / 7 Drive System |
| Included Features |
Web Video, ARC, Ink Circulation Pump |
| Optional Features |
Auto Turret System, Turn Bar System, Cylinder Trolley |
Material Print Range
| OPP |
12–25 microns |
| BOPP |
15–50 microns |
| CPP |
30 microns |
| MET PET |
8–50 microns |
| PET |
8–50 microns |
| LDPE |
40–60 microns |
| HDPE |
40–60 microns |
Main Features
- 1. High Efficiency
- 2. Low Operating Cost
- 3. High Productivity
- 4. Good Reliability
- 5. Easy Operation & Controls
