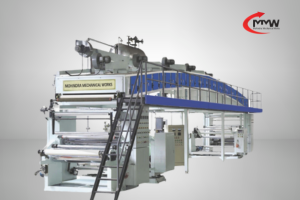

Gravure Coating Machine

Gravure Coating Machine

The Gravure Coating Machine delivers smooth, precise, and consistent coating for film, foil, and paper substrates. It works perfectly for packaging applications where uniform coating and surface quality play a critical role. The gravure system controls coating transfer accurately and ensures repeatable results. This Gravure Coating Machine supports high-quality coating for flexible packaging, laminates, and specialty materials. It improves finish consistency and maintains stable performance during long production runs. Packaging manufacturers rely on it for clean coating, controlled thickness, and professional output. Built for high-speed and efficient operation, the Gravure Coating Machine improves productivity without compromising quality. It helps reduce material waste and ensures reliable coating performance. If you need a coating solution that delivers accuracy, consistency, and industrial-grade results, the Gravure Coating Machine is a trusted choice.

Technical Specifications

Working Speed 50 M/min to 250 M/min
Max Web Width 20” to 80” (500 mm to 2050 mm)
Unwind Roll Diameter 1000 mm (40”)
Rewind Roll Diameter 600 / 800 / 1000 mm approx.
Drying Section Multi-zone arch type
Heat Source Electrical / Hot Air
Coating Section Gravure / Reverse Roll / Bor System / Air Knife
Laminating Section Chilling / Heating Roller with Pneumatic Nip Roll
Drive Variable Speed: DC/AC
Unwind / Rewind Simplex / Duplex / Surface
Key Features
  • 1. Higher speed for efficient coating operations
  • 2. Easy to operate with user-friendly controls
  • 3. High efficiency for industrial-scale production
  • 4. Low operating cost with energy-efficient design
  • 5. Environmentally preferred coating process
  • 6. High productivity for large batch runs
  • 7. Reliable machine structure for long-term use
  • 8. Simple operation and precise controls for uniform coating
Applications
  • 1. Industrial paper and film coating
  • 2. Gravure and reverse roll coating processes
  • 3. Production of coated laminates and specialty papers
Benefits
  • 1. Uniform coating thickness for quality finish
  • 2. High-speed operations reduce production time
  • 3. Low maintenance and operational cost
  • 4. Environmentally friendly and energy-efficient
  • 5. Reliable performance for continuous production
