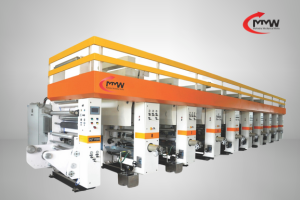

The 6 Colour Rotogravure Printing Machine supports complex packaging designs with enhanced colour depth and clarity. Ideal for high-volume production, it delivers precise registration, durable performance, and consistent print quality while maintaining high speed and accuracy over long production cycles.
| Machine Type | Rotogravure Printing Machine |
|---|---|
| Model | Mohindra Roto – STANDARD |
| Printing Stations | 6 Colour |
| Web Width | Max 1320 mm | Min 950 mm |
| Printing Speed | Max 300 m/min |
| Print Repeat Range | 400 – 800 mm |
| Cylinder Width | 1270 – 1570 mm |
| Cylinder Mounting | Shaftless |
| Material Print Range | OPP, BOPP, CPP, PET, MET PET, LDPE, HDPE, LLDPE, Paper, Alu Foil |
| Drying Type | Hot Air, Independent |
| Drying Cabinet | Air Knife Type |
| Max Drying Temperature | 90°C |
| Tension Control | Load Cell Based Closed Loop |
| Tension Range | 4 – 30 kg |
| Drive System | PLC Controlled AC Digital Drive |
| Register Control | Automatic Electronic (ATE) |
| Web Video System | Optional |
| Ink Type | Solvent Based |
| Power Supply | 415V AC, 3 Phase, 50 Hz |
| Machine Certification | CE |
