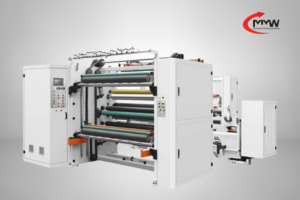

The High Speed Cantilever Slitting Machine is designed for fast, accurate, and efficient slitting of paper, films, laminates, and other flexible materials. Its cantilever structure enables easy roll loading and quick setup, reducing operator effort and downtime. The machine delivers clean and precise cuts with excellent tension control for consistent output quality. Built for high-speed performance, it ensures smooth operation and reliable productivity. Robust construction and user-friendly controls make it ideal for continuous industrial use. Low maintenance requirements and durable components provide long-term cost efficiency and dependable performance.

Product Details
Get a Quote Now
Technical Specifications
Machine High Speed Cantilever Slitting Machine
Type of Slitting Razor / Rotary Cutter
Machine Height Four Feet
Machine Speed 400 MPM to 600 MPM
Winding Unit Cantilever
Nip Unit A.C Main Drive
Winding Drive (2 Station) Synchronized to Main Drive
Unwind Drive Synchronized to Main Drive
Type of Unwinder Shaftless
Type of Winder Duplex
Lay on Roller Function Pneumatic
Nip Roller Loading Pneumatic
Web Guiding Auto
Machine Colour Siemens Grey & Tata Blue
Features
Unwinding Unit Shaftless unwinder with max outer reel dia 800 to 1000 mm
Unwinder Motor 0.7 KW motor for horizontal movement on linear guides
Tension Control Automatic load cell based pneumatic brake with ±0.1 KGM accuracy
Brake System 4 caliper pneumatic brake made of RE Italy
Unwinder Trolley Hydraulic cylinder operated tilting system
Type of Rewinder Duplex Cantilever
Maximum Outer Reel Diameter 500 mm to 800 mm
Rewinder Shaft Two 50 mm hardened alloy steel shafts
Rewinder Tension Control Load cell / dia sensor based 7.5 KW digital drive
Shaft Mounting Bearings with hydraulic linear guide arms support
Off Loader Fixed off loader with moving arms
