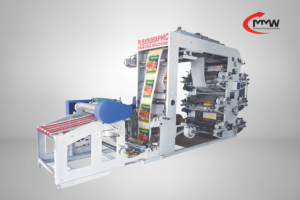

Deliver sharp, high-quality prints every time with our state-of-the-art Flexographic Printing Machine. Designed for versatility, it handles a wide range of materials including paper, film, and various packaging substrates. Engineered with advanced precision and high-speed performance, this machine ensures consistent color reproduction, fine detail, and exceptional print quality. Ideal for businesses seeking efficiency, reliability, and professional-grade results, it brings innovation and accuracy to every printing project, helping you meet demanding production deadlines without compromising on quality.
| Web Width | 500MM TO 2050MM (20" TO 80") |
|---|---|
| No. of Colours | 1 TO 8 |
| Unwind / Rewind Reel Dia | 1000MM (40") |
| Unwind / Rewind Core ID | 76MM AND 152MM |
| Range of Cylinder Circumference | 250MM - 1270MM (10" TO 50") |
| Printing Speed | 80 MTR PER MIN (VARIABLE AS PER NO. OF COLOURS OF MACHINE) |
| Power Requirement |
4 COLOUR MACHINE: 16 KW 6 COLOUR MACHINE: 20 KW 8 COLOUR MACHINE: 24 KW |
| Floor Space Length | VARIABLE AS PER THE MACHINE |
| Material That Can Be Printed | HM, LD, NONWOVEN, LLDPE, HDPE, PAPER, POLYESTER FILM, FOIL ETC |
|---|---|
| Available Models | 2, 4, 6, AND 8 COLOURS |
| Web Width | 20" TO 80" (500MM TO 2050MM) |
| Reverse Printing Arrangement | Yes |
| Top Drying Hood System | Yes, with intermediate drying between units |
| Body | Heavy duty cast iron body (vibration free) |
| Guide Rolls | Low friction dynamically balanced |
| Web Roller | Aluminium rollers & sheet rollers |
| Additional Features | Electric crane system, web aligner system, tension control system, online slitting provision, winding & unwinding air shaft, surface rewinding |
