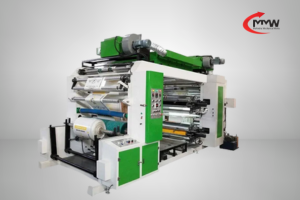

PP Bag Printing Machine

PP Bag Printing Machine

Achieve clear, sharp, and vibrant impressions on polypropylene (PP) bags with our advanced PP Bag Printing Machine. Engineered for consistency and efficiency, this machine delivers uniform print quality even during high-speed, high-volume production runs. Its precision-driven design ensures accurate colour registration and excellent ink adhesion, resulting in durable and long-lasting prints. Built with a robust structure and reliable components, it offers smooth operation, minimal downtime, and extended service life. Ideal for packaging manufacturers, it supports continuous production while maintaining superior print clarity, making it a dependable solution for modern, large-scale PP bag printing requirements.

Technical Specifications

Printing Speed 5000 IPH
Material Mild Steel
Color Printing Yes
Maximum Cutting Speed > 1000 mm/sec
Automation Grade Automatic
Weight 6 Ton
Thickness 100 mm
Packaging Type Wooden Packaging
Material Width 10 To 100 Inch
Motor Power 5 H.P.
Minimum Order Quantity 1 Unit
Specifications
  • 1. No. Of Colours: 1 To 8
  • 2. Web Width: 500 mm To 2050 mm (20 To 80)
  • 3. Unwind/Rewind Reel Dia: 1000 mm (40)
  • 4. Unwind/Rewind Core ID: 76 mm And 152 mm
  • 5. Range Of Cylinder Circumference: 250 mm – 1270 mm (10 To 50)
  • 6. Printing Speed: 80 Mtr Per Min (Variable As Per No. Of Colours Of Machine)
  • 7. Power Requirement: 4 Colour Machine: 16 Kw / 6 Colour Machine: 20 Kw / 8 Colour Machine: 24 Kw
  • 8. Floor Space Length: Variable As Per The Machine
  • 9. Material That Can Be Printed: HM, LD, Nonwoven, LLDPE, Paper, Polyester Film, Foil Etc
  • 10. Available Models: 2, 4, 6, And 8 Colours
  • 11. Web Width: 500 mm To 2050 mm
  • 12. Reverse Printing Arrangement: Yes
  • 13. Top Drying Hood System And Intermediate Drying Between Units: Yes
  • 14. Body: Heavy Duty Cast Iron Body (Vibration Free)
