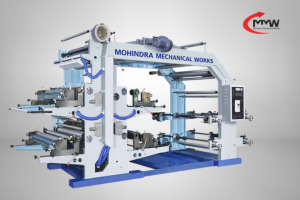

Flexo Printing Machine

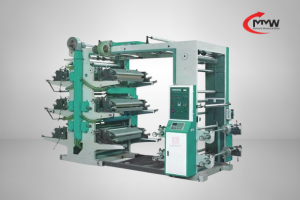

Flexo Printing Machine

The Flexo Printing Machine is a high-speed, precision-engineered printing solution designed for efficient and high-quality printing on paper, film, foil, and non-woven materials. Using advanced flexographic technology ensures sharp impressions, vibrant colours, and consistent results across long production runs. This machine is ideal for paper bags, non-woven bags, labels, and packaging film printing, offering smooth operation, low maintenance, and exceptional accuracy. Built for durability and energy efficiency, it helps businesses achieve superior print quality and maximise production performance.

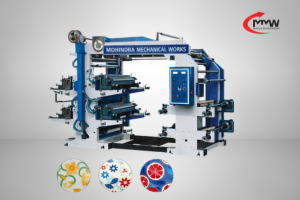

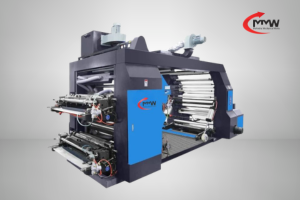

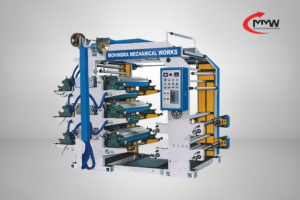

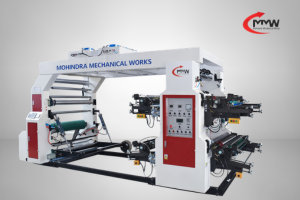

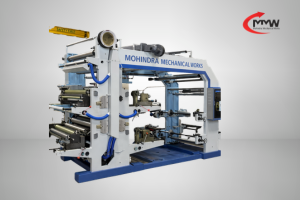

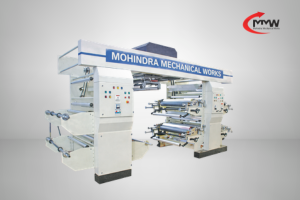

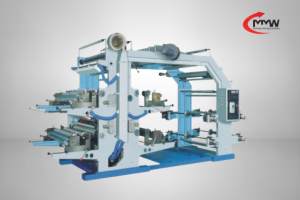

Related Products

Flexo Printing Machine

Technical Specifications

Printing Speed 150 m/min
Number Of Colors 8
Material Mild Steel
Maximum Cutting Speed (mm/sec) > 1000 mm/sec
Model Number MOHINDRA
Motor Power (kw) 5 H.P.
Packaging Type Wooden Packaging
Printing Speed (meter/min) 70 to 80 Metre
Printing Width 10 to 100 inch
Thickness (Millimetre) 100 mm
Minimum Order Quantity 1 Unit
Features
  • 1. Safe operation
  • 2. Easy handling
  • 3. Reduced running costs
Specifications
  • 1. No. Of Colours: 1 to 8
  • 2. Web Width: 500 mm to 2050 mm (20 to 80)
  • 3. Unwind/Rewind Reel Dia: 1000 mm (40)
  • 4. Unwind/Rewind Core ID: 76 mm and 152 mm
  • 5. Range of Cylinder Circumference: 250 mm - 1270 mm (10 to 50)
  • 6. Printing Speed: 80 mtr per min (variable as per no. of colours of machine)
  • 7. Power Requirement: 4 colour machine: 16 kw / 6 colour machine: 20 kw / 8 colour machine: 24 kw
  • 8. Floor Space Length: Variable as per the machine
  • 9. Material That Can Be Printed: HM, LD, NONWOVEN, LLDPE, PAPER, POLYESTER FILM, FOIL ETC
  • 10. Available Models: 2, 4, 6, and 8 colours
  • 11. Web Width: 500 mm to 2050 mm
