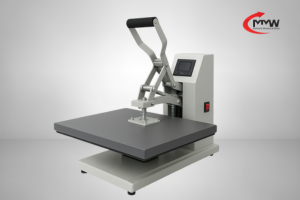

Heat Press Lamination Machine
The Heat Press Lamination Machine uses controlled heat and pressure to achieve strong and uniform lamination.
It ensures excellent adhesion and smooth surface finishing across various materials.
The machine is suitable for sheets, boards, labels, and similar substrates.
Designed for consistent performance, it delivers reliable results with minimal material waste.
Ideal for packaging, printing, and industrial lamination applications requiring precision bonding.
Product Details
Get a Quote Now
Technical Specifications
| Price Range |
35 to 60 Lakhs |
| Drying System |
Thermic Fluid / Hot Air Generator / Electric Heating System |
| Heating System |
Heating of drum through electrical heating or thermic oil circulating system |
| Air Shaft |
Air shaft with safety chuck for unwind and rewind |
| Pneumatic Brake |
Pneumatic brake with load cell control for unwind |
| Drive |
A.C. Digital drive |
| Optional |
Corona treater for LDPE |
| Working Width |
1000 mm |
| Foil Unwind Reel Diameter |
1000 mm (1000 Kg) |
| LDPE Unwinder Reel Diameter |
500 mm (300 Kg) |
| Rewinder Reel Diameter |
1200 mm (1500 Kg) |
| Material Processed |
Blister 20–25 micron |
| Maximum Line Speed |
80–100 mpm |
Features
| Drying Technology |
Multiple drying options including thermic fluid, hot air, and electric heating |
| Heating Control |
Uniform drum heating via electrical or thermic oil circulation system |
| Web Handling |
Air shaft with safety chuck for stable unwind and rewind operation |
| Brake System |
Pneumatic brake with load cell control for precise tension management |
| Drive System |
A.C. digital drive for smooth and efficient machine performance |
| Optional Add-on |
Corona treater available for LDPE material processing |
| Material Capability |
Designed for processing blister materials in the range of 20–25 microns |
Main Features
- 1. High-speed operation up to 100 mpm
- 2. Advanced drying and heating system options
- 3. Robust web handling with air shaft and pneumatic brake
- 4. Compatible with foil and LDPE materials
- 5. Heavy-duty construction for continuous industrial use
